• Atmosphere
  • Air Temperature
    • Concrete and buildings found in cities and towns affect how much heat is radiated away from the Earth. This irradiated heat can affect local air temperatures which have cascading effects for other parts of the environment.
  • Clouds
    • The cloud cover over a city affects the land-air energy budget through many different parameters, like surface temperature, relative humidity, and precipitation. Conversely, cities can also affect the formation of local clouds by limiting evaporation and vegetative transpiration rates.
  • Precipitation
    • Areas covered with artificial, impervious materials like concrete or asphalt can experience higher flood risks from precipitation than more natural spaces.
  • Surface Temperature
    • Surface temperature is an important parameter for assessing the presence and intensity of the surface urban heat island. It's an essential factor for the estimation of the energy budget in an urban area because it controls the heat transfer from the ground to the air—also known as sensible heat.
  • Relative Humidity
    • Evaporation acts as a cooling mechanism for cities. However, impervious urban materials, like asphalt and concrete, don't retain water, so evaporation rates from surface and subsurface soils are drastically limited. Lower evaporation rates also impact the overall relative humidity in an urban environment.
• Biosphere
  • Biometry
    • By measuring the heights of the tree and vegetation canopy in urban environments, we can better understand how variables like surface temperature, humidity, and building heating loads are affected by greater or lesser amounts of natural shade.
  • Land Cover
    • Since cities replace natural, vegetative land cover with harder surfaces, it's important to know how these changes in material affect local temperatures, albedo, emission coefficients, and the land-air energy budget. This knowledge also helps guide us on the least ecologically impactful way to expand our urban environments.
• Hydrosphere
  • Water Temperature
    • The temperature of urban water bodies influences amount of airborne water vapor, and thus humidity, cloud cover, and precipitation. Higher temperatures typically lead to higher evaporation rates, while lower temperatures have the opposite affect.
• Pedosphere (Soil)
  • Soil Characteristics
    • The characteristics of urban soil are greatly influenced by human activity. For example, the materials comprising the soil can change significantly from their original form after a building or road construction project begins.
  • Soil Infiltration
    • Impervious urban materials typically have lower water infiltration rates, which can lead to higher risk of flooding after extreme precipitation events.
  • Soil Moisture (Gravimetric)
    • Through anthropogenic changes to land cover, soil characteristics, and the atmosphere, we are directly affecting the soil moisture content in urban areas. The water content of the soil has a significant impact on the areas biome type as well as the plants/animals that can live in that area.
  • Soil Temperature
    • By converting natural landscapes into urban ones, we affect the temperature of the soil beneath us. Changes in the soil's temperature has broad impacts on the underground ecosystem, and thus the environment on the surface.

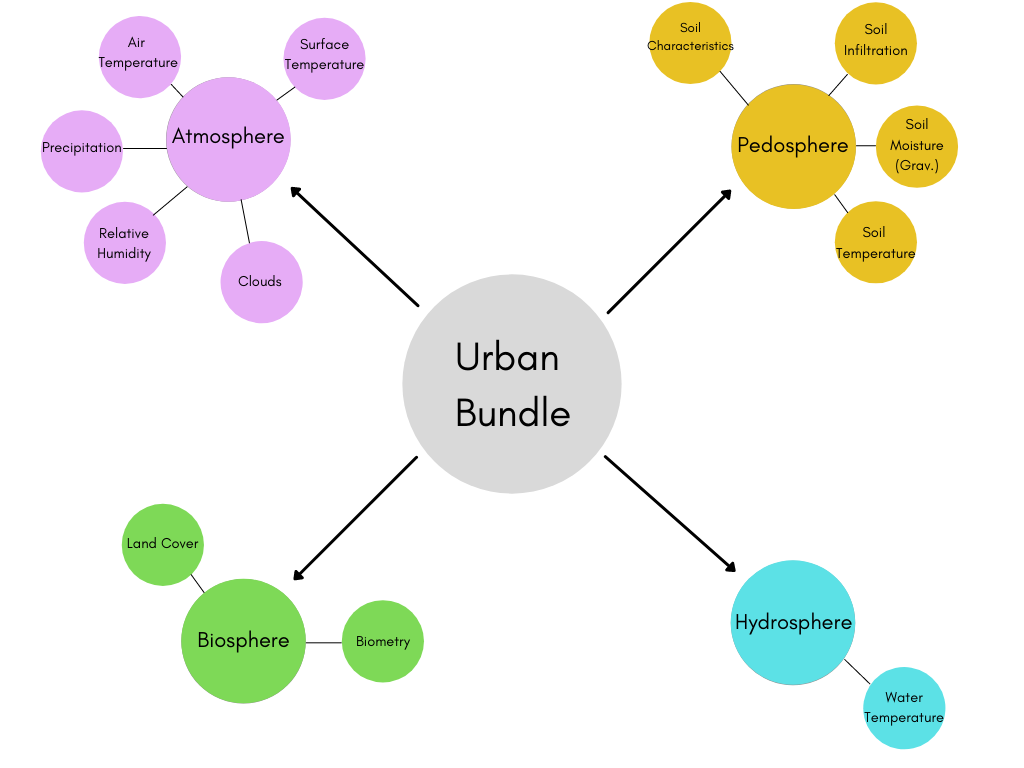

Check out our chart below for a visual representation on how all these protocols fit together within the Urban Bundle:

Urban areas comprise less than 3% of the Earth’s surface, however their proliferation has been largely driven by socio-economic factors with little consideration for their environmental impact. Today, a particularly important aspect for studies of urban environments is the lack of balance between natural and built spaces. These imbalances influence a host of other factors including, urban microclimatic changes, the depletion of green spaces, increases in anthropogenic heat sources, proliferations of impervious sources, deteriorated air quality, increase flooding and much more.

Air pollution and heat islands within urban ecosystems are especially crucial areas of study due to their negative impacts on human health. Air pollution impacts are exacerbated for members of vulnerable groups, while increased temperatures lead to more energy used for cooling. The latter can lead to poor city energy efficiency, intensified energy poverty, and greater disparities between socio-economic classes.

These two issues are mostly confined to medium- and large-size cities. However, the differences measured between urban and rural area can be quite significant. For example, air temperature measurements can raise by 6-8 degree Celsius as you move from the countryside into the built environment. Furthermore, poor urban planning can lead to temperature variations within the city itself, creating areas of excessive thermal intensity.

This intensified thermal heating is a result of the change in natural green spaces to hard environments with significant heat loads. Where forests or fields would cool the local area through evapotranspiration processes, urban settings lack the moisture to adequately cool the habitat through the same methods. Additionally, buildings have a strong impact on the flow of wind through the area and, in most cases, suppress the outgoing thermal radiation close to the ground.

Before taking measurements out in your local community, it's beneficial to first focus your approach by creating research questions. A few of these questions include:

• Does urbanization increase surface temperature?
• Does surface temperature have corresponding influence on air temperature increase?
• Does surface temperature have corresponding influence on soil temperature at a depth of 10 cm?

Effect of urbanization on surface, air, and soil temperature changes in Akure, Nigeria;

Students: Folayan Favour, Dunbaiju Promise, Oluwaseyi Olamobisi
Mentors: Mr. Olawunmi Fasakin, Mrs. Oluremi Adeniyi
GLOBE School: St. Peter’s Unity Secondary School, Akure (SPUSSA), Ondo State
Level: Secondary School (grades 9-12, ages 14 – 18 years)

Introduction

The Earth atmospheric system has been seriously affected by different urbanization processes that greatly impacted natural ecosystem. These have influenced the evapotranspiration and the energy cycle. Data were collected from three observational sites (School Football Field, School Farm and Cement Floor) within SPUSSA study area. The objectives of this project are to evaluate the effect of urbanization and examine the influence of surface temperature on air temperature and soil temperature. These data are weekly surface land, air and soil temperatures for period of five months from October 2020 to February 2021. No soil temperatures were obtained from the Cement Floor. Cloud cover conditions were recorded. Data were analyzed using mean graph and analysis of variance (ANOVA) test. The general attributes of the surface and sky conditions are dry ground, leaves on trees, low moisture content, overcast, somewhat hazy sky visibility and opaque cloud opacity. The mean weekly graphs indicate increase surface land temperature, air temperature and soil temperature with time across the three selected sites. This implies increase of surface land, air and soil temperatures with urbanization, that is, increase surface temperature with increase air temperature and increase surface temperature with soil temperature. The ANOVA reveals significant effect of urban island heat effect (urban land transformation) on surface land, air and soil temperatures across the School Field, School Farm and Cement Floor, at probability p<0.05 and 5% error level, with significant values of 0.000 (for the three climatic variables on the School Farm); significant values of 0.004, 0.000 and 0.000 (for the three climatic variables on the School Farm), and significant values of 0.000 and 0.000 (for the two climatic variables). It is recommended that other climatic factors should be included for further studies to give a holistic view to effects of urban land transform in the study area.

Research Questions

1. Does urbanization increase surface temperature?

2. Does surface temperature have corresponding influence on air temperature increase?

3. Does surface temperature have corresponding influence on soil temperature at a depth of 10 cm?

Protocols

• Clouds
• Surface Temperature
• Soil Temperature
• Air Temperature

Results

The GPS Coordinates for the three observational sites are:

School Field coordinates N07⁰ 15’ 31.2”, E005⁰ 11’ 03.4” with elevation 352 m and accuracy ±2 m.

School Farm coordinates N07⁰ 15’ 4.2”, E005⁰ 10’ 53.8” with elevation 354 m and accuracy ±2 m.

Cemented Floor coordinates N07⁰ 15’ 34.7”, E005⁰ 11’ 03.8” with elevation 352 m and accuracy ±2 m.

Samples of weekly data measurements and cloud cover conditions obtained from the School Field, School Farm and Cemented Floor are presented in Tables 1, 2 and 3.

Table 1: Data and Observations obtained from the School Field after Two Weeks.

Observation Spots	Surface Temperature (°C)	Air temperature (°C)	Soil Temperature (°C)	Cloud Cover conditions- Sky and Surface
1	46.1	37.3	33.0	Dry ground, Leaves on trees. Moisture content: Low. Cloud Cover: Overcast. Sky colour: Pale Blue. Sky visibility: Somewhat hazy. Cloud Opacity: Opaque.
2	47.6	39.4	39.0
3	47.6	41.2	39.0
4	49.7	40.8	40.0
5	49.1	40.9	39.0
6	51.6	41.2	38.0
7	50.6	41.1	39.0
8	51.6	40.3	40.0
9	51.8	40.7	40.0

Table 2: Data and Observations obtained from the School Farm after Two Weeks.

Observation Spots	Surface Temperature (°C)	Air temperature (°C)	Soil Temperature (°C)	Cloud Cover conditions- Sky and Surface
1	52.6	40.7	40.0	Dry ground, Leaves on trees. Moisture content: Low. Cloud Cover: Overcast. Sky colour: Pale Blue. Sky visibility: Somewhat hazy. Cloud Opacity: Opaque
2	50.6	41.5	38.0
3	49.5	40.8	40.0
4	47.7	40.1	38.0
5	53.4	40.8	37.0
6	51.8	41.4	39.0
7	48.3	41.3	39.0
8	49.8	41.1	38.0
9	49.9	41.1	37.0

Table 3: Data and Observations obtained during the Cemented Floor after Eight weeks.

Observation spots	Surface Temperature (°C)	Air Temperature (°C)	Cloud Cover conditions- Sky and Surface
1	47.5	32.5	Dry ground, Leaves on trees. Moisture content: Low. Cloud Cover: Overcast. Sky colour: Milky. Sky Visibility: Somewhat hazy. Cloud Opacity: Opaque.
2	47.4	38.1
3	48.2	37.9
4	48.9	38.1
5	47.6	38.4
6	48.6	38.6
7	48.2	38.8
8	43.7	38.2
9	51.6	39.5

The average values of the three climatic factors (Surface temperature, Air temperature and Soil temperature at a depth of 10 cm) obtained during the period of the study from the three observation sites are shown in Tables 4, 5 and 6.

Table 4: Average values of Surface temperature, Air temperature and Soil temperature at a depth of 10 cm obtained from the School Field during the period of the Research.

Average School Field Data Measurements
Weeks	Surface Temperature (0C)	Air Temperature (0C)	Soil Temperature (0C)
2	49.5	41.5	39.9
4	48.5	40.2	38.2
6	48.3	36.4	38.1
8	50.1	36.9	40.2
10	50.4	38.4	36.7
12	45.6	35.6	34.3
14	45.3	35.7	36.9
16	50.4	35.3	36.6
18	52.4	36.7	40.2
20	51.2	36.7	39.3

Table 5: Average values of Surface temperature, Air temperature and Soil temperature at a depth of 10 cm obtained from the School Farm during the period of the Research.

Average School Farm Data Measurements
Weeks	Surface Temperature (0C)	Air Temperature (0C)	Soil Temperature (0C)
2	50.4	41.0	38.4
4	49.1	38.4	34.7
6	49.7	38.8	36.9
8	51.0	41.2	40.7
10	51.7	40.3	39.6
12	48.8	37.6	37.4
14	51.3	38.4	38.7
16	53.0	40.2	40.3
18	54.1	40.7	42.7
20	53.5	40.3	42.9

Table 6: Average values of Surface temperature and Air temperature obtained from the Cement Floor during the period of the Research.

Average Cemented Floor Data Measurements
Weeks	Surface Temperature (0C)	Air Temperature (0C)
2	40.1	34.7
4	47.8	38.4
6	46.9	35.8
8	48.0	37.8
10	48.0	37.9
12	43.1	35.4
14	44.9	37.3
16	44.3	37.6
18	47.4	39.8
20	47.4	39.5

Figures 12 and 13 show the average or mean graphs of the Surface, Air and Soil Temperatures against time over the School Field and School Farm Observational Sites within the Study Area; while Figure 14 displays the average or mean graph of the Surface and Air temperatures against time over the Cemented Floor Observational Site within the Study Area.

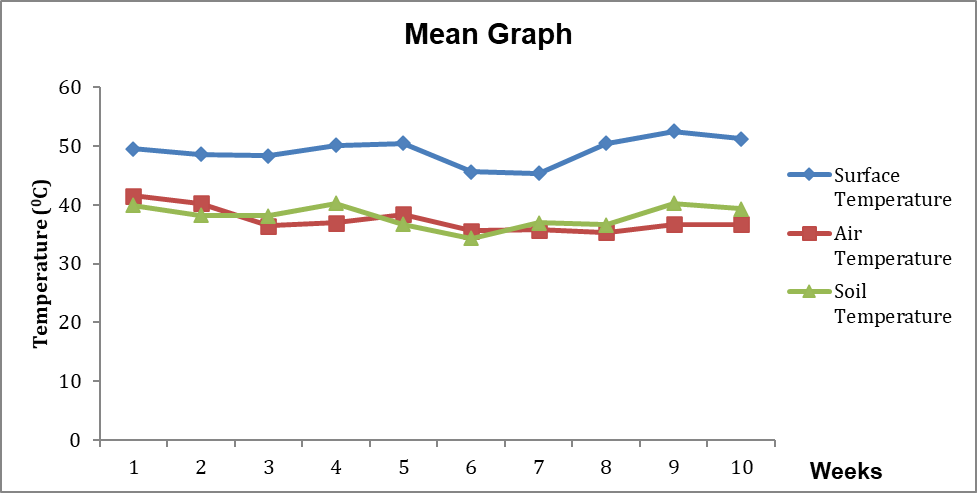

Figure 12: The Average Surface, Air and Soil Temperatures against Time over the School Field Observational Site within the Study Area.

Weeks

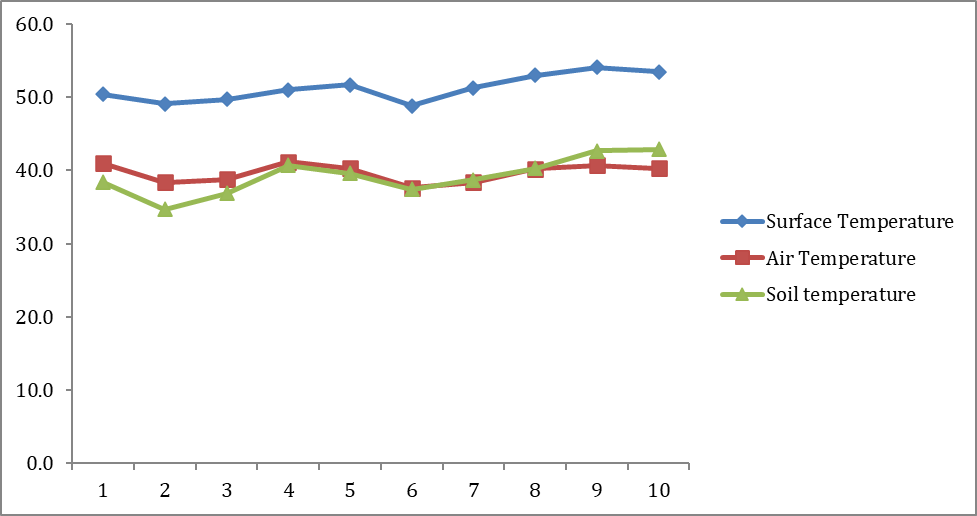

Figure 13: The Average Surface, Air and Soil Temperatures against Time over the School Farm Observational Site within the Study Area.

Weeks

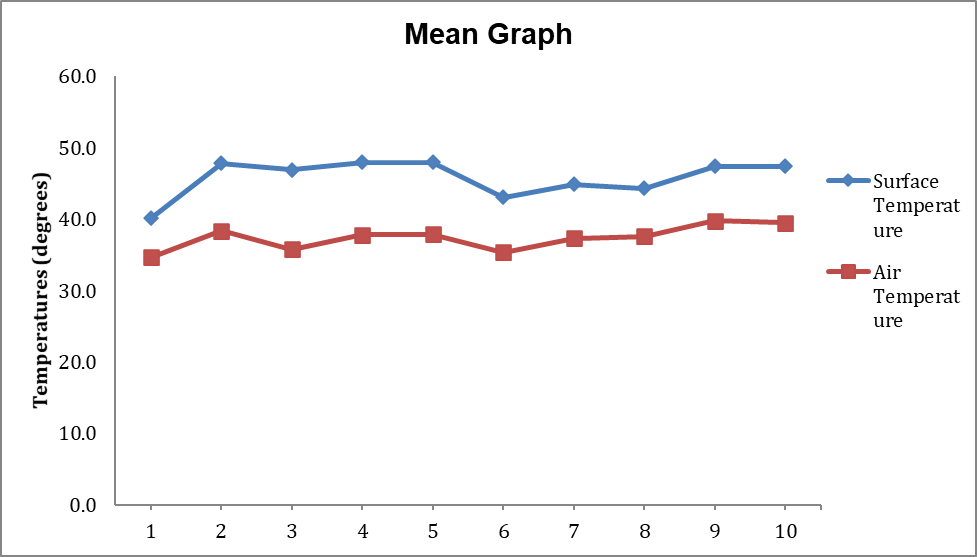

Figure 14: The Average Surface and Air Temperatures against Time over the Cement Floor Observational Site within the Study Area.

Table 7: ANOVA Result for the School Field
	Sum of Squares	df	Mean Square	F	Sig.
Surface Temperature	Between Groups	447.420	9	49.713	12.499	.000
Within Groups	318.202	80	3.978
Total	765.622	89
Air Temperature	Between Groups	320.287	9	35.587	16.040	.000
Within Groups	177.489	80	2.219
Total	497.776	89
Soil Temperature	Between Groups	335.993	9	37.333	13.986	.000
Within Groups	213.547	80	2.669
Total	549.540	89

Table 8: ANOVA Result for School Farm
	Sum of Squares	df	Mean Square	F	Sig.
Surface Temperature	Between Groups	244.704	9	27.189	2.969	.004
Within Groups	732.742	80	9.159
Total	977.446	89
Air Temperature	Between Groups	171.451	9	19.050	25.930	.000
Within Groups	58.773	80	.735
Total	230.225	89
Soil Temperature	Between Groups	541.122	9	60.125	40.533	.000
Within Groups	118.667	80	1.483
Total	659.789	89

Table 9: ANOVA Result for Cemented Floor
	Sum of Squares	df	Mean Square	F	Sig.
Surface Temperature	Between Groups	563.496	9	62.611	31.646	.000
Within Groups	158.280	80	1.979
Total	721.776	89
Air Temperature	Between Groups	253.031	9	28.115	27.101	.000
Within Groups	82.991	80	1.037
Total	336.022	89

Figure 15 presents the Print screen of GLOBE Visualization page of St. Peter’s Unity secondary School, Akure, Ondo State, Nigeria.

Figure 15: Print screen of GLOBE Visualization page of St. Peter’s Unity secondary School, Akure, Ondo State, Nigeria.

1. Does urbanization increases surface temperature?
2. Does surface temperature have corresponding influence on air temperature increase?
3. Does surface temperature have corresponding influence on soil temperature at a depth of 10 cm?

From Figure 12, increases in surface temperature and air temperature with increase in soil temperature are observed after week 14.

From Figure 13, after twelve weeks, the surface temperature, air temperature and soil temperature experienced increase in their values.

From Figure 14, after twelve weeks, the surface temperature and air temperature experienced increases in their values.

ANOVA statistical technique was used to test the significance of surface temperature across the sites in area of investigation as well as the significance of the corresponding influence of the surface temperature on air temperature and soil temperature.

Table 7 shows the ANOVA result from the School Field site. The value of the F-statistics for surface temperature, air temperature and soil temperature at a depth of 10 cm, at probability p< 0.05 and 5% error level are 12.499, 16.040 and 13.986 respectively. All the three variables have significant values of 0.000. This indicates that surface temperature, air temperature and soil temperature at a depth of 10 cm over the School Field is significant across the study area. This implies that the significance of one is a corresponding significance of the other over the area of investigation.

Table 8 presents the ANOVA result from the School Farm observation site. The F-statistics values for surface temperature, air temperature and soil temperature at a depth of 10 cm, at probability p< 0.05 and 5% error level are 2.969, 25.930 and 40.533 respectively. The significant values of the surface temperature, air temperature and soil temperature at a depth of 10 cm are 0.004, 0.000 and 0.000 respectively. This indicates that surface temperature, air temperature and soil temperature at a depth of 10 cm over the School Farm site is significant across the study area.

Table 9 displays the ANOVA result from the Cemented Floor atmospheric site. In this case, the soil temperature at a depth of 10 cm was not carried out. Hence, two variables are possible. The F-statistics values for surface temperature and air temperature, at probability p<0.05 and 5% error level are 31.646 and 27.101 respectively. The significant values of the surface temperature and air temperature are 0.000 and 0.000 respectively. It reveals that the surface temperature and air temperature over the cemented floor is significant across the study area.

Conclusion

The study has revealed that the rate of urbanization is high in the Akure city and this consequently impacted the study area over the period of investigation; and that there is significant influence of urbanization on surface temperature. In addition, surface temperature has a close relationship with air temperature and soil temperature such that there is greater influence of surface temperature on air temperature and soil temperature.

It is recommended the future study on effect of urbanization rate in the area of study should include more climatic factors for a more broad based understanding.

Additional Information

Learn more about this case study

Urban population worldwide has grown rapidly from 751 million in 1950 to 4.2 billion in 2018. Asia, despite its relatively lower level of urbanization, is home to 54% of the world’s urban population, followed by Europe and Africa with 13% each. Today, the most urbanized regions, with percentage of population living in urban areas, include:

• Northern America: 82%
• Latin America and the Caribbean: 81%
• Europe: 74%
• Oceania: 68%

*Measurements from 2018

The level of urbanization in Asia is now close to 50%. In contrast, Africa remains mostly rural, with 43% of its population living in urban areas. Overall, 55% of the world’s population lives in urban areas, a proportion that is expected to increase to 68% by 2050.

Given these increases in urbanization, it's important to ensure that the natural ecosystems in our cities are in good condition. To support this effort, you can take action by examining the state of the environment in the city where you live and try to identify the parameters that influence the quality of life for city dwellers. You can also help raise awareness of urban ecosystem problems by reporting your findings to our databases and other environmental authorities to better understand how the urban habitat affects the various Earth spheres.

Acknowledgments

Compiled by:

• Prof. Constantinos Cartalis
• Dr. Dixon Butler

Many thanks to the members of the Science Working Group for their comments.

References

• European Environment Agency (EEA): https://www.eea.europa.eu/themes/sustainability-transitions/urban-environment
• GLOBE: https://www.globe.gov/
• IPCC: https://www.ipcc.ch/report/ar5/wg2/urban-areas/
